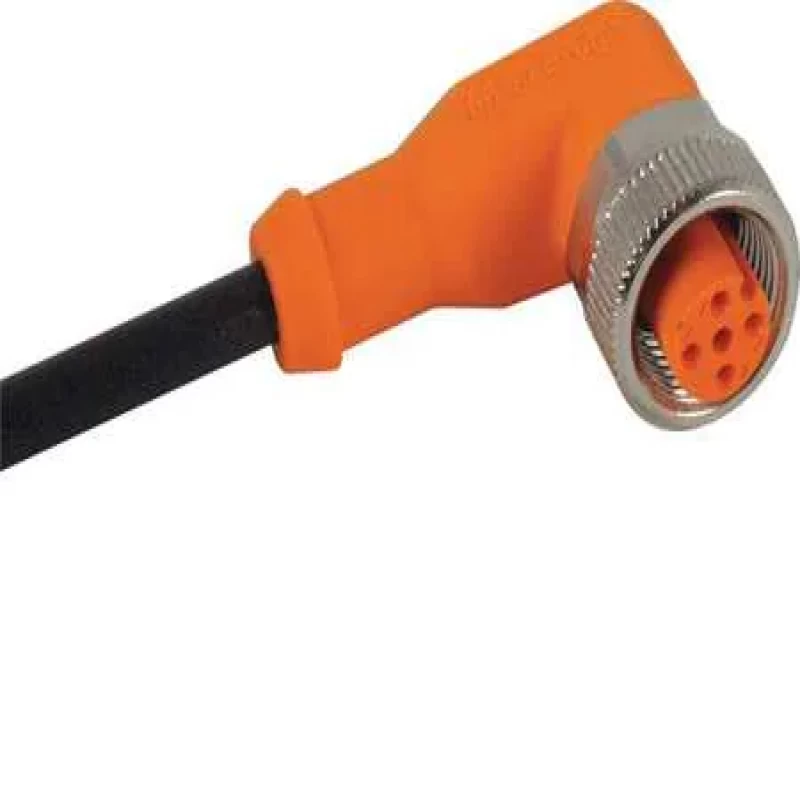

Cordset, 5 Pin, Receptacle, Female

IFM Part No : EVC005

Cable Length: 5m
Jacket Color: Black
End 1 Number of Pins: 5
Max. Voltage: 250VAC/300VDC
End 1 Thread: M12
Wire Size: 22 AWG
End 1 Connection Type: Receptacle

Cordset, End 1 Number of Pins 5, End 1 Gender and Plug End Female Right Angle, End 2 Gender and Plug End Bare Wire, End 1 Keyway Single, Cable Length 5 m, Jacket Color Black, Number of Conductors 4, End 1 Connection Type Receptacle, End 2 Connection Type Bare Wire, Max. Voltage 250V AC/300V DC, Features Gold-Plated Contacts, Max. Amps 4 A, Wire Size 22 AWG, Jacket Material TPU, IP Rating 65,67,68,69K, Temp. Range -25 Degrees to 75 Degrees C, Standards cRUus Approval, End 1 Thread M12

  • Cable Length: 5m
  • Jacket Color: Black
  • End 1 Number of Pins: 5
  • Max. Voltage: 250VAC/300VDC
  • End 1 Thread: M12
  • Wire Size: 22 AWG
  • End 1 Connection Type: Receptacle
  • End 2 Connection Type: Bare Wire
  • End 1 Keyway: Single
  • IP Rating: IP65, IP67, IP68, IP69K
  • Standards: cRUus Approval
  • Max. Amps: 4A
  • End 1 Gender and Plug End: Female Right Angle
  • Jacket Material: TPU
  • Features: Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
