Enclosed Power Relay, 10Pin, 120VAC, DPST

Omron Part No : G7J-2A2B-T-W1-AC100/120

Item - Relay: Enclosed Power Relay

Coil Volts: 100/120V AC

AC Contact Rating - Relay: 25A @ 240V (NO), 8A @ 240V (NC)

  • Description
  • Specifications

Enclosed Power Relay, Coil Volts 100/120V AC, AC Contact Rating - Relay 25A @ 240V (NO), 8A @ 240V (NC), DC Contact Rating - Relay 25A @ 28V, Number of Pins - Relay 10, Contact Form - Relay DPST-NC, DPST-NO, Mounting - Relay Bracket, Power Consumption - Relay 2.6 VA, Contact Material Silver Alloy, Electrical Connection - Power Relay 1/4 in Tab Terminal


  • Coil Volts: 100/120V AC
  • AC Contact Rating - Relay: 25A @ 240V (NO), 8A @ 240V (NC)
  • DC Contact Rating - Relay: 25A @ 28V
  • Number of Pins - Relay: 10
  • Contact Form - Relay: DPST-NC, DPST-NO
  • Mounting - Relay: Bracket
  • Power Consumption - Relay: 2.6 VA
  • Contact Material: Silver Alloy
  • Electrical Connection - Power Relay: 1/4 in Tab Terminal
  • Body Width - Relay: 2.03 in
  • Hz - Electrical: 50/60 Hz
  • Standards: CSA Approved, UL
  • Body Depth - Relay: 1.36 in
  • Features: Includes Mfr. No. R99-04-FOR-G5F (1YAX1) Mounting Bracket, Miniature Hinge For Maximum Switching Power, No Contact Chattering for Momentary Voltage Drops Up to 50% of Rated Voltage
  • Dimensions: 2.52"H, 1.36"W, 2.03"D

Related Products

View Now
General Purpose Relay, 120V AC Coil Volts, Octal, 8 Pin, DPDT
View Now
Time Delay Relay, 120VAC, 5A, DPDT, Socket
View Now
Latching Relay, 9 Pins, Square, 120VAC
View Now
Relay, 8Pin, DPDT, 10A, 24VAC
View Now
Relay, 4Pin, SPST, 10A, 24VAC
View Now
General Purpose Relay, 24V DC Coil Volts, Square, 8 Pin, DPDT
View Now
Relay Socket, Standard, Square, 11 Pin
View Now
Enclosed Power Relay, 6 Pin, 24VAC, DPST-NO
View Now
General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, DPDT

Suggested Products

View Now
Battery Pack: Fits HT1250/MTX850/MTX950/MFR. NO. HT750/HT1550 Model, Fits Motorola Brand
View Now
Proximity Sensor, Inductive, 5mm, NPN, NO
View Now
3/8"-16 x 2" Pipe Size Zinc Low Carbon Steel Square Bend U-Bolt
View Now
20V Lithium-Ion Brushless 6-Tool Combo Kit
View Now

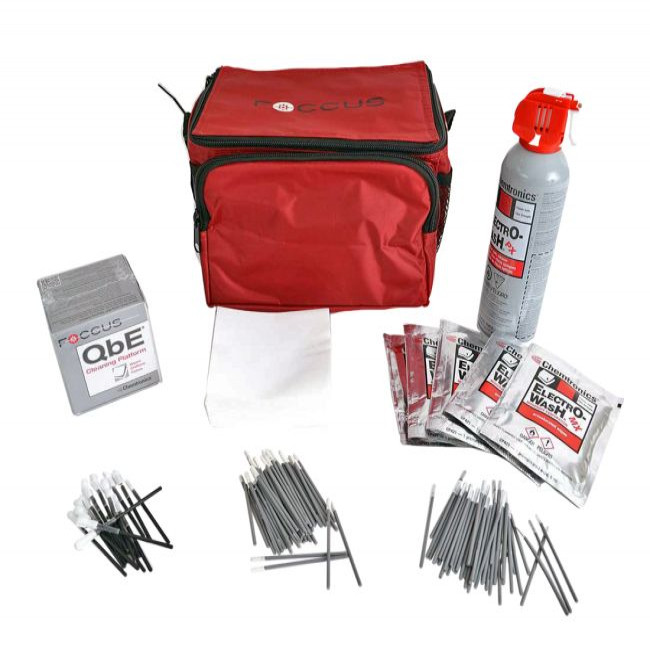

ITW Chemtronics FTTH Fiber Optic Cleaning Kit includes 1 QBE 1 ES810 50 48042F 50 38542F 15 51125 100 6704F 5 CP421
View Now

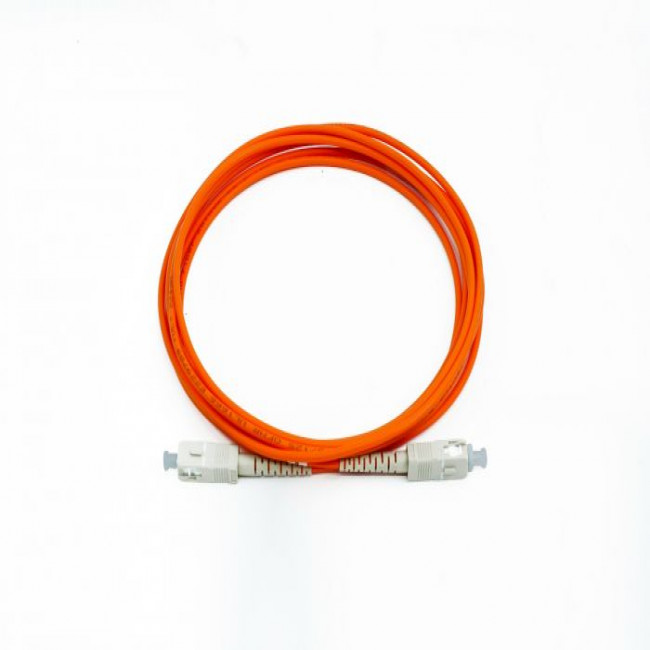

3MM SC-SC SIMPLEX-50 M OM2 2Meter
