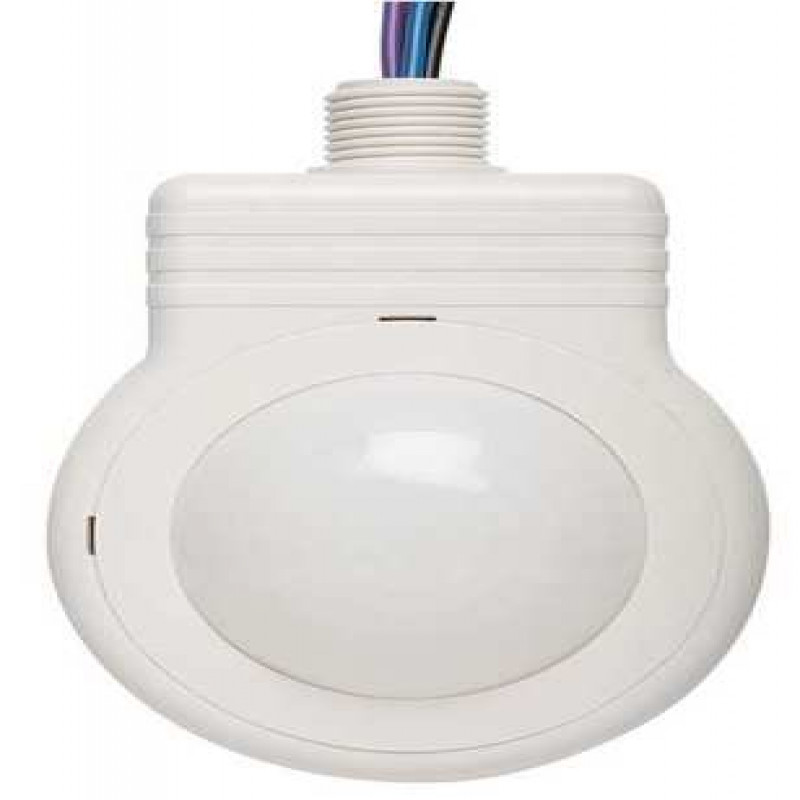

High Bay Occupancy Sensor, PIR, 360 deg.

Hubbell Part No : HBSXT24

Use With - Motion Sensing and Dimming: Hubbell CU300A, CU300HD

Item - Motion Sensing and Dimming: Occupancy Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

High Bay Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Fixture Mount, Coverage at Suggested Mounting Height 5,500 sq ft, Operating Voltage - Motion Sensing and Dimming 24V DC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 16 min, 30 min, 4 min, 8 min, Time Delay Adjustment Method - Motion Sensor Manual

  • Use With - Motion Sensing and Dimming: Hubbell CU300A, CU300HD
  • Item - Motion Sensing and Dimming: Occupancy Sensor
  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Fixture Mount
  • Coverage at Suggested Mounting Height: 5,500 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 24V DC
  • Color - Motion Sensing and Dimming: White
  • Time Delay Adjustment Method - Motion Sensor: Manual
  • Time Delay - Motion Sensor: 16 min, 30 min, 4 min, 8 min
  • Item: High Bay Occupancy Sensor
  • Max. Capacity @ 120VAC: 800W (Fluorescent, Induction, LED)
  • Coverage Angle - Motion Sensor: 360 Degrees
  • Color: White
  • Lighting Technology: Fluorescent, Induction, LED
  • Includes: (2) Photocells, 360 Degrees Lens
  • Suggested Mounting Height - Motion Sensor: Up to 45 ft
  • Max. Capacity @ 277VAC: 1200W (Fluorescent, Induction, LED)
  • Operating Temp. Range: -40 Degrees to 149 Degrees F
  • Description/Special Features: IP65 Watertight, Large Detection Area, Outdoor Rated, Mounts Up to 45 ft. High
  • Standards: Ul and cUL Listed
  • For Use With: Mfr. No. CU300A, CU300HD
