Male Disconnect, Bare

3M Part No : MA250DM/6RRK

Item: Male Disconnect

Insulation: None

Insulation Color: Bare

Male Disconnect, Insulation None, Insulation Type Bare, Insulation Color Bare, Tab Size 0.032 in x 0.250 in, Barrel Inside Dia. 0.08 in, Max. Temp. 347 Degrees F, Max. Voltage 600 V, Overall Length 0.8 in, Seam Butted, Connection Material Copper, Standards CSA Certified, RoHS Compliant, UL Listed, Connection Type #6 Ring to Male Tongue Adapter, Package Quantity 500

  • Insulation: None
  • Insulation Color: Bare
  • Insulation Type: Bare
  • Connection Type: #6 Ring to Male Tongue Adapter

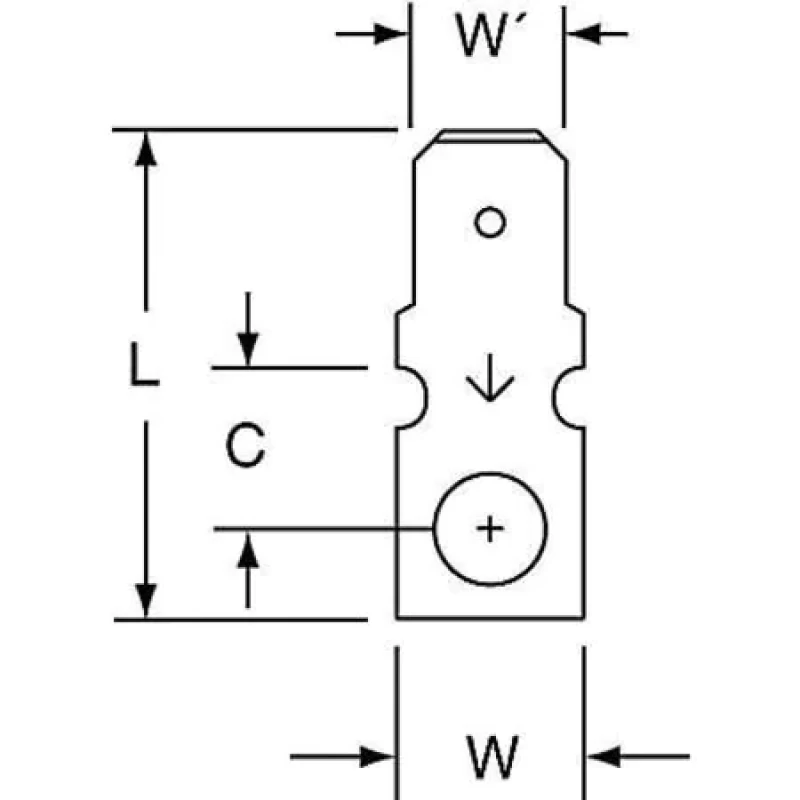

  • Tab Size: 0.032 in x 0.250 in
  • Overall Length: 0.8 in
  • Seam: Butted
  • Max. Temp.: 347 Degrees F
  • Max. Voltage: 600 V
  • Connection Material: Copper
  • Standards: CSA Certified, RoHS Compliant, UL Listed
