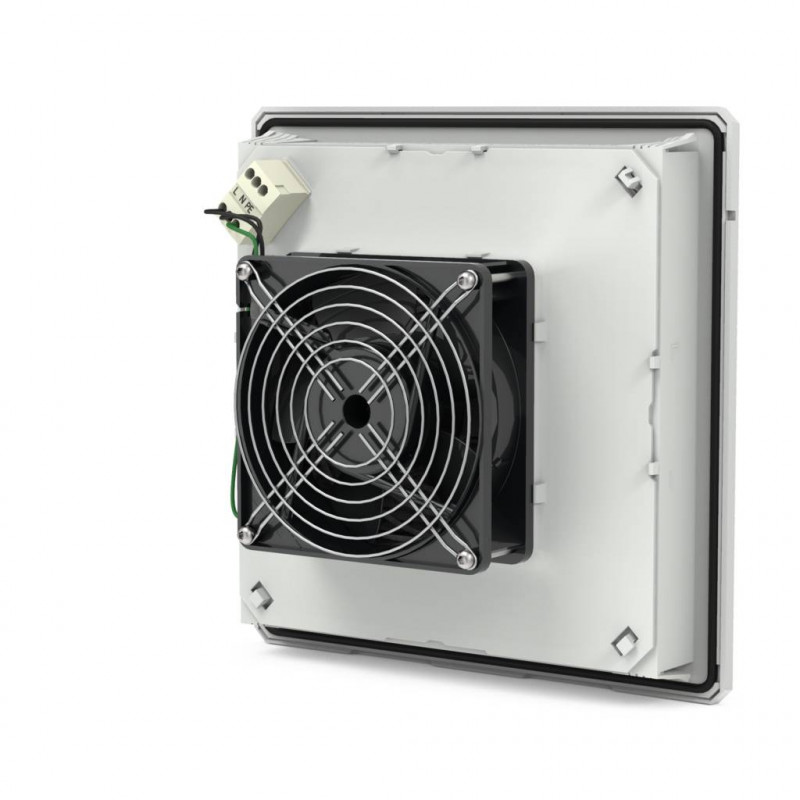

PF 42.500 Filterfan

Pfannenberg Part No : 11642101055

  • installation size 4, airflow rate up to 160 m³/h
  • 2 performance classes, cut-out compatible
  • degrees of protection IP 54 and IP 55, NEMA type 12
  • UR and UL approval
  • UV resistance (IP 55 version, RAL 7035)
  • cut-out compatible with installation size 4 from the 3rd Generation
  • also available in black

  • Description
  • Specifications
  • Product Support

DataPF 42.500
Rated voltage ±10 %AC 50/60 HzDC
230 V115 V12 V24 V48 V
Unimpeded airflowIP 54125 / 138 m³/h125 m³/h
IP 55145 / 160 m³/h145 m³/h
Filter mat quality class
according to EN 779		IP 54G4
IP 55G4
Temperature range–40 … +55 °C
ColourRAL 7035, different colours available on request

DataPF 42.500
Rated voltage ±10 %AC 50/60 HzDC
230 V115 V12 V24 V48 V
Unimpeded airflowIP 54125 / 138 m³/h125 m³/h
IP 55145 / 160 m³/h145 m³/h
Filter mat quality class
according to EN 779		IP 54G4
IP 55G4
Temperature range–40 … +55 °C
ColourRAL 7035, different colours available on request

Conformity PF/PFA 4th Gen.

Manual PF/PFA 1x.000 - 6x.000

29338.pdf
