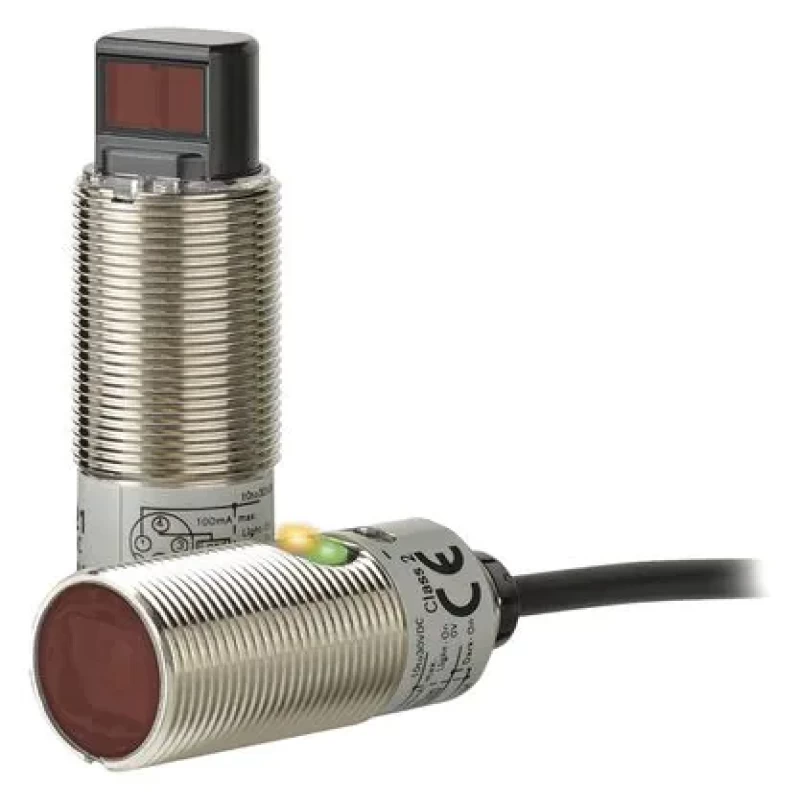

Photoelectric-Sensor-Cylinder-Thru-Beam-E3FB-TP112M

Photoelectric Sensor, Cylinder, Thru-Beam

Omron Part No : E3FB-TP112M

Item: Cylindrical Photoelectric Sensor

IP Rating: 69K

Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Through Beam Set, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm

Item: Cylindrical Photoelectric Sensor
IP Rating: 69K
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Body Material: Nickel Plated Brass
Features: High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments
Sensing Method - Cylindrical Photoelectric Sensor: Through Beam Set
Circuit Type - Cylindrical Photoelectric Sensor: PNP
Length - Cylindrical Photoelectric Sensor: 45 mm
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 100 mm
Min. Object Size: 75mm dia Opaque
Light Source: Red LED
NEMA Rating: IP69K
Operating Temp. Range: -25 Degrees to 55 Degrees C
Standards: CE Approval
Power Requirement - Cylindrical Photoelectric Sensor: 5 to 30V DC
Electrical Connection - Cylindrical Photoelectric Sensor: 2m Cable
Diameter - Cylindrical Photoelectric Sensor: 18 mm

Photoelectric Sensor, Cylinder, Thru-Beam
