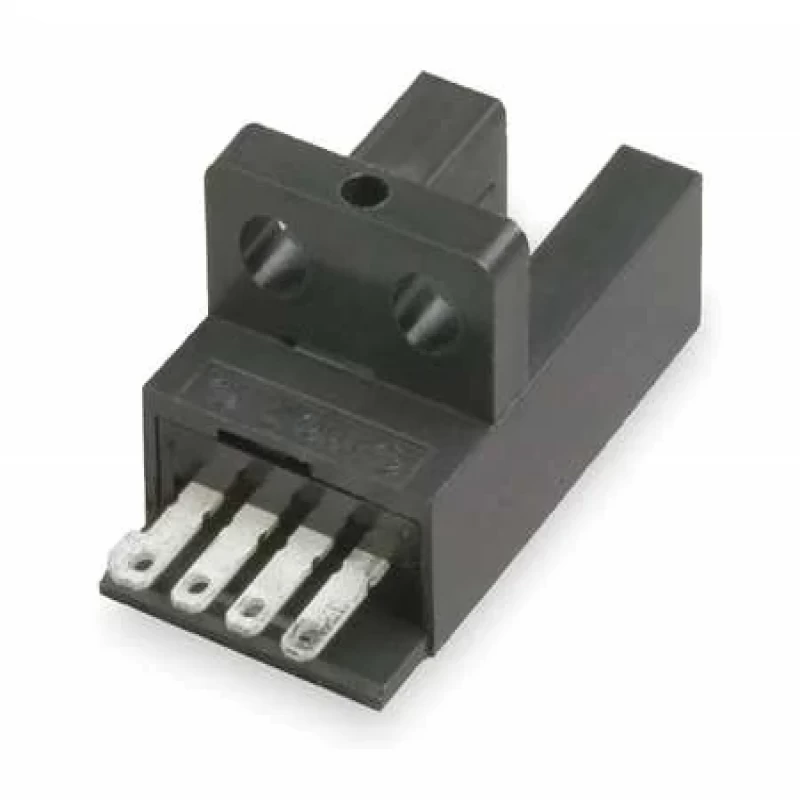

Photoelectric-Sensor-L-Slot-Thru-Beam-EE-SX673P

Photoelectric Sensor, L-Slot, Thru-Beam

Omron Part No : EE-SX673P

Item: Photoelectric Sensor

IP Rating: 50

Circuit Type: PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor L-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

Item: Photoelectric Sensor
IP Rating: 50
Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.25"
Depth: 1.11"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 50 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Operating Frequency: 1,000 Hz
Height - Rectangular Photoelectric Sensor: 13 mm
Electrical Connection: Spade
Length: 0.53"
Depth - Rectangular Photoelectric Sensor: 28 mm
Width - Rectangular Photoelectric Sensor: 6 mm
Light Source: Infrared LED
Min. Object Size: 2 x 0.80mm Opaque
Shape: L-Slot
Max. Sensing Distance: 5mm
Standards: CE Approval, CSA Certified, UL Listed
Operating Temp. Range: -25 Degrees to 55 Degrees C
Sensing Method: Through Beam
Operation Mode: Selectable Light On/Dark On
Power Requirement: 5 to 24VDC
Body Material: PBT
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver

Photoelectric Sensor, L-Slot, Thru-Beam
