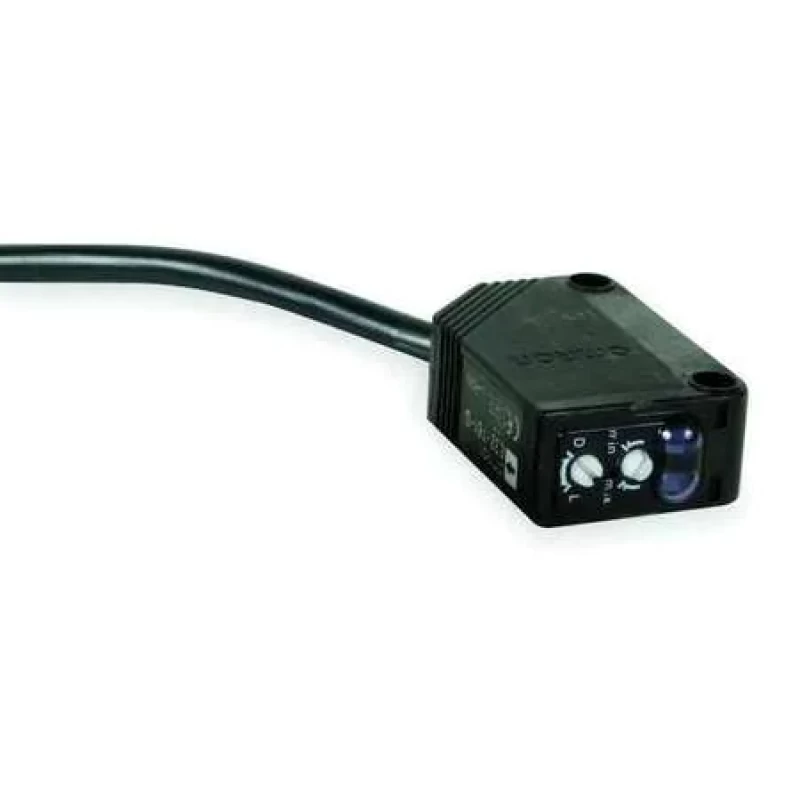

Photoelectric-Sensor-Rectangl-Reflective-E3Z-R61

Photoelectric Sensor, Rectangl, Reflective

Omron Part No : E3Z-R61

Item: Photoelectric Sensor

Circuit Type: NPN

IP Rating: 67

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Retroreflective, Power Requirement - Rectangular Photoelectric Sensor 12 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 500 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Circuit Type: NPN
IP Rating: 67
Sensing Method - Rectangular Photoelectric Sensor: Retroreflective
Power Requirement - Rectangular Photoelectric Sensor: 12 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 0.41"
Depth: 0.79"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 500 mm
Max. Load Current: 100 mA
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 30 mm
Length: 1.20"
Footnotes: 4
Body Material: PBT
Depth - Rectangular Photoelectric Sensor: 20 mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Shape: Rectangular
Standards: CE Approval
Power Requirement: 12 to 24VDC
Min. Object Size: 75mm dia Opaque
Response Time: 1.0 msec
Max. Sensing Distance: 500mm
Operation Mode: Selectable Light On/Dark On
Sensing Method: Retroreflective
Width - Rectangular Photoelectric Sensor: 10 mm
Light Source: Red LED
Features: Output Short Circuit and Power Supply Reverse Polarity Protection

Photoelectric Sensor, Rectangl, Reflective
