Photoelectric-Sensor-Rectangle-Thru-Beam-EE-SPW-411

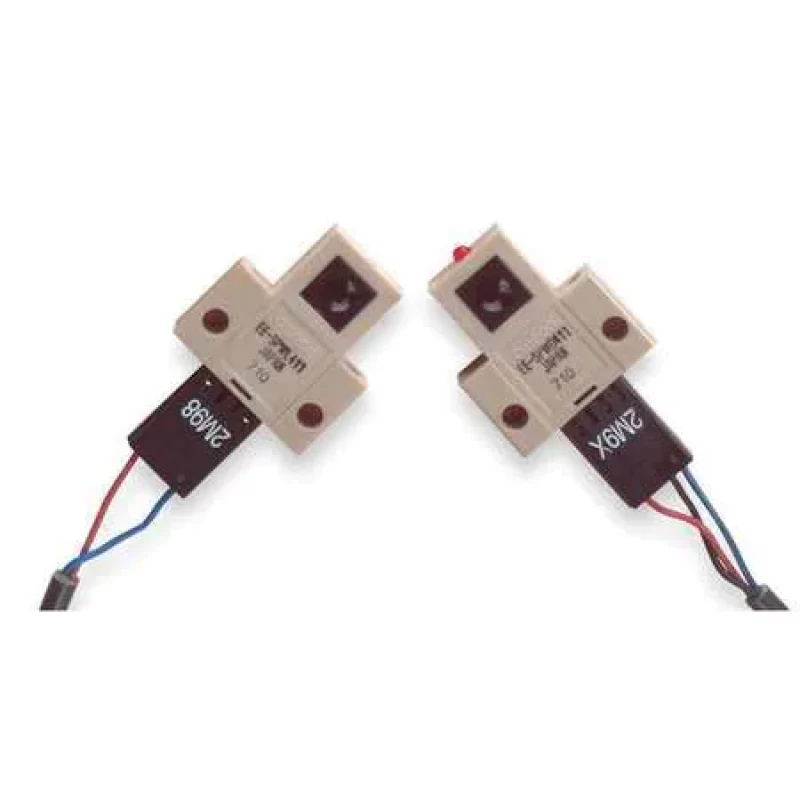

Photoelectric Sensor, Rectangle, Thru-Beam

Omron Part No : EE-SPW-411

Item: Photoelectric Sensor

IP Rating: 60

Circuit Type: NPN

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Through Beam Set, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 1.0 m, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 27 mm

Item: Photoelectric Sensor
IP Rating: 60
Circuit Type: NPN
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 1.00"
Depth: 0.32"
Operating Mode - Photoelectric Sensor: Light On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 1.0 m
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Operating Frequency: 100 Hz
Height - Rectangular Photoelectric Sensor: 27 mm
Electrical Connection: 2m cable
Depth - Rectangular Photoelectric Sensor: 8 mm
Shape: Rectangular
Min. Object Size: 5mm dia Opaque
Width - Rectangular Photoelectric Sensor: 25 mm
Operating Temp. Range: -10 Degrees to 55 Degrees C
Body Material: PBT
Response Time: 100.0 msec
Features: Built In Amplifier, Polycarbonate Lens
Length: 1.06"
Light Source: Infrared LED
Max. Sensing Distance: 1m
Power Requirement: 5 to 24VDC
Sensing Method: Through Beam

Photoelectric Sensor, Rectangle, Thru-Beam
