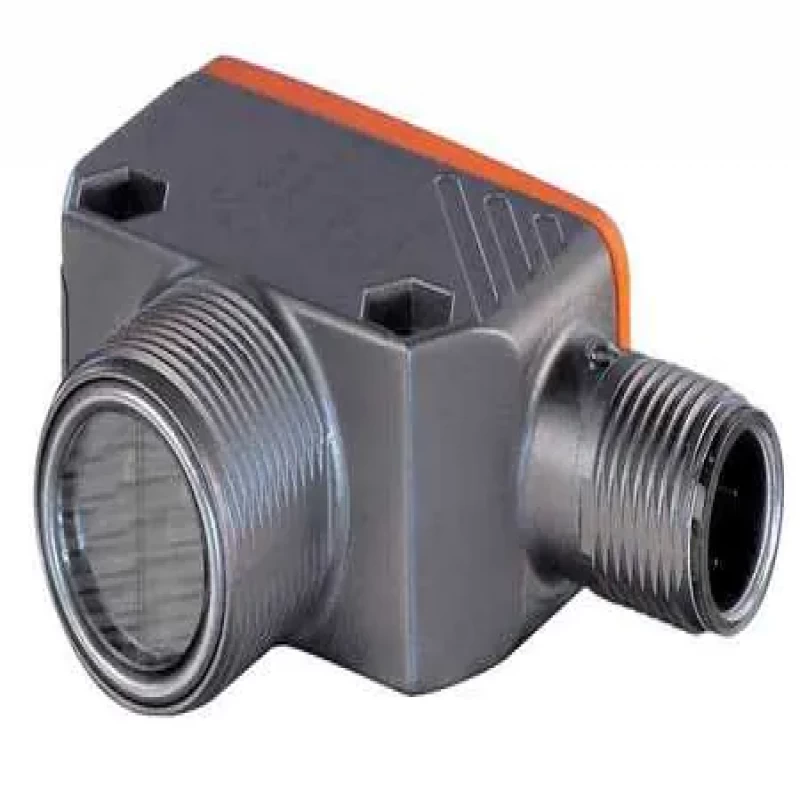

Photoelectric-Sensor-Rt-Angle-Thru-Beam-OGE280

Photoelectric Sensor, Rt Angle, Thru-Beam

IFM Part No : OGE280

Circuit Type: PNP

IP Rating: 67

Sensing Method - Rectangular Photoelectric Sensor: Through Beam Receiver

Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Through Beam Receiver, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 20.0 m, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

Circuit Type: PNP
IP Rating: 67
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Receiver
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 18.00mm
Operating Mode - Photoelectric Sensor: Dark On
Depth: 52.00mm
Max. Sensing Distance - Rectangular Photoelectric Sensor: 20 m
Max. Load Current: 200 mA
Operating Frequency: 1,000 Hz
Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
Electrical Connection: Quick Disconnect M12 Connector
Height - Rectangular Photoelectric Sensor: 35 mm
Max. Sensing Distance: 20m
NEMA Rating: Not Rated
Light Source: Red LED
Body Material: EPDM, LCP, Metal Alloy, PA
Standards: CE Approval, CUL Listed, UL Listed
Depth - Rectangular Photoelectric Sensor: 52 mm
Operation Mode: Dark On
Operating Temp. Range: -25 Degrees to 60 Degrees C
Shape: Right Angle
Sensing Method: Through Beam Receiver
Power Requirement: 10 to 30VDC
Features: PMMA Lens, Reverse Polarity and Overload Protection
Length: 35.40mm

Photoelectric Sensor, Rt Angle, Thru-Beam
