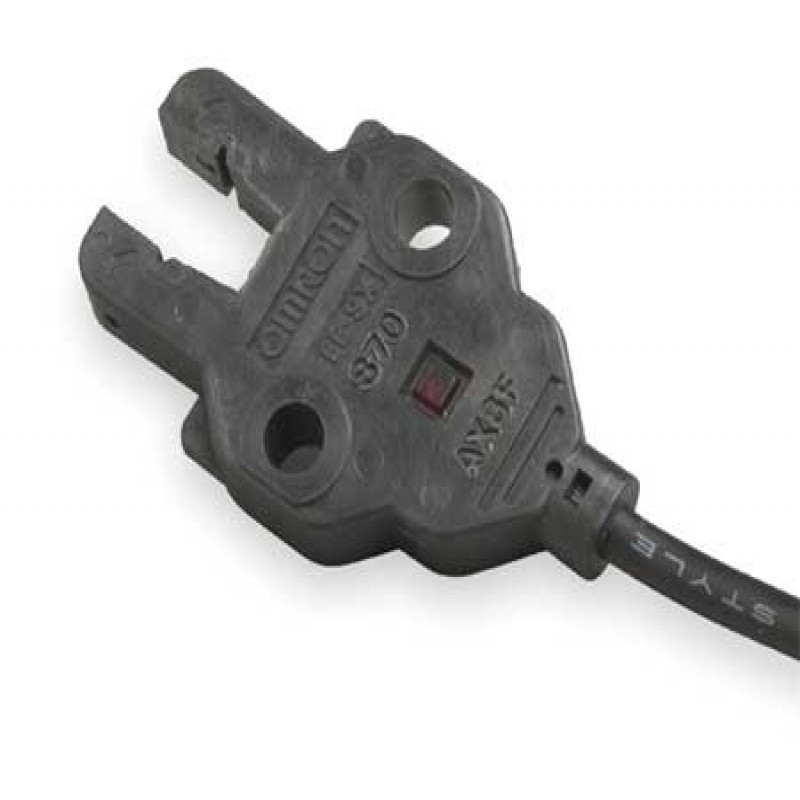

Photoelectric-Sensor-Stndrd-Slt-ThruBeam-EE-SX870P

Photoelectric Sensor, Stndrd Slt, ThruBeam

Omron Part No : EE-SX870P

Item: Photoelectric Sensor

IP Rating: 60

Circuit Type: PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Standard Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 31 mm

IP Rating: 60
Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Width: 0.54"
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Operating Mode - Photoelectric Sensor: Light On
Depth: 0.16"
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 50 mA
Operating Frequency: 1 Hz
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Height - Rectangular Photoelectric Sensor: 31 mm
Electrical Connection: 2m cable
Sensing Method: Through Beam
Body Material: PBT
Depth - Rectangular Photoelectric Sensor: 4 mm
Footnotes: 4
Light Source: Infrared LED
Length: 1.22"
Operation Mode: Light On
Min. Object Size: 2 x 0.80mm Opaque
Shape: Standard Slot
Power Requirement: 5 to 24VDC
Width - Rectangular Photoelectric Sensor: 14 mm
Standards: CE Approval, CSA Certified, UL Listed
Operating Temp. Range: -25 Degrees to 55 Degrees C

Photoelectric Sensor, Stndrd Slt, ThruBeam
