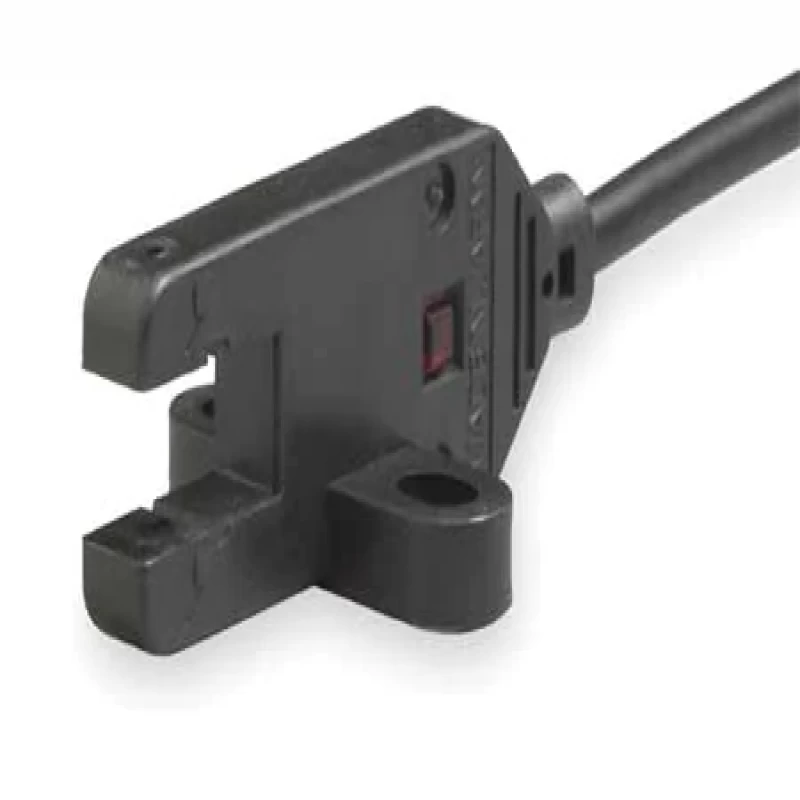

Photoelectric-Sensor-T-Slot-Thru-Beam-EE-SX772P

Photoelectric Sensor, T-Slot, Thru-Beam

Omron Part No : EE-SX772P

Item: Photoelectric Sensor

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

IP Rating: 60

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor T-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 31 mm

Item: Photoelectric Sensor
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
IP Rating: 60
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.47"
Depth: 0.47"
Operating Mode - Photoelectric Sensor: Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 50 mA
Operating Frequency: 1 Hz
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 31 mm
Power Requirement: 5 to 24VDC
Standards: CE Approval, CSA Certified, UL Listed
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver
Light Source: Infrared LED
Sensing Method: Through Beam
Shape: T-Slot
Length: 1.22"
Depth - Rectangular Photoelectric Sensor: 12 mm
Max. Sensing Distance: 5mm
Min. Object Size: 2 x 0.80mm Opaque
Footnotes: 4
Body Material: PBT
Operating Temp. Range: -25 Degrees to 55 Degrees C
Width - Rectangular Photoelectric Sensor: 12 mm
Operation Mode: Dark On

Photoelectric Sensor, T-Slot, Thru-Beam
