Proximity Sensor, Capacitive, 18mm, NO

Omron Part No : E2K-X8MY1

Item: Cylindrical Proximity Sensor

Proximity Sensor Style: Cylindrical Proximity Sensor

Proximity Sensing Method: Capacitive

Cylindrical Proximity Sensor, Capacitive, 18.0 mm, Proximity Sensor Power Requirement 90 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 8.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, IP Rating 66, Case Material ABS, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA, Description/Special Features LED Indication


  • Proximity Sensor Style: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Capacitive
  • Proximity Sensor Power Requirement: 90 to 250V AC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NO
  • Length: 41 mm
  • Proximity Sensor Diameter: 18.0 mm

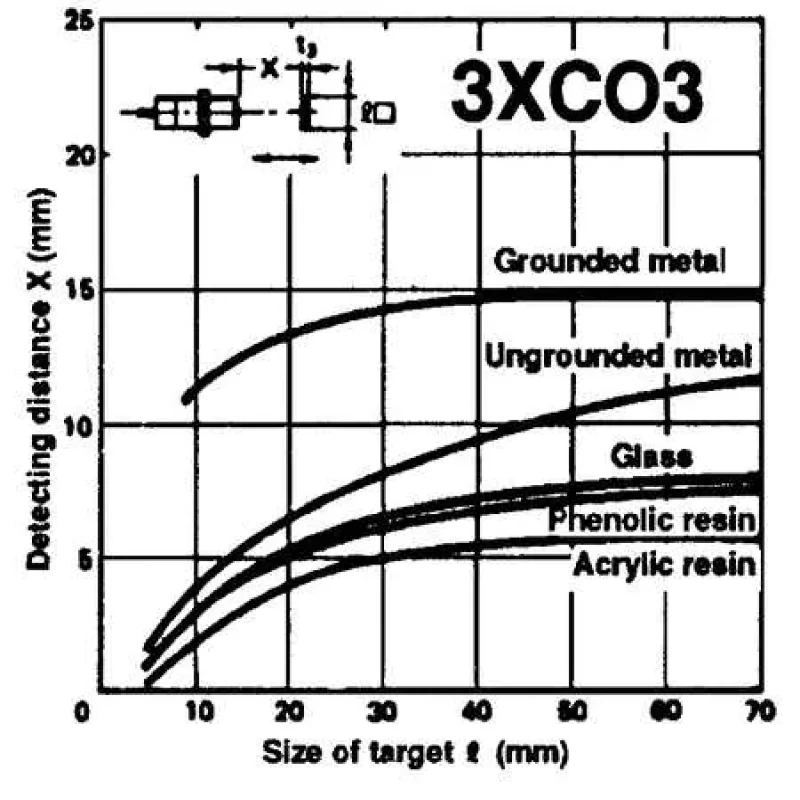

  • Max. Detecting Distance: 8.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Basic Proximity Sensor Case Material: Plastic
  • Shielded / Unshielded: Unshielded
  • Case Material: ABS
  • Proximity Sensor Operating Frequency: 10 Hz
  • Includes: Instruction Manual
  • Max. Current Load: 200mA
  • Description/Special Features: LED Indication
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • IP Rating: 66
  • Standards: CE Compliance, CSA Certified, UL Listed
