SpecGrade Locking Electronic Photocontrol 12Yr

Intermatic Part No : LED4536SC

Mounting: Locking
For Use With: HID, Incandescent, LED
Voltage: 120 to 277V AC

  • Description
  • Specifications

Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3, Max. Ballast Amps 8.3, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color White/Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Enclosure Type Polycarbonate, Housing Material Polycarbonate, Standards ANSI C136 P10, California Title 20 Compliant, cUL


  • Mounting: Locking
  • For Use With: HID, Incandescent, LED
  • Voltage: 120 to 277V AC
  • Max. Wattage: 1,000
  • Max. Incandescent Amps: 8.3
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 1.5
  • Foot Candles Off: 2.25
  • Color: White/Blue
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Standards: ANSI C136 P10, California Title 20 Compliant, cUL
  • Length: 2 3/4 in
  • Enclosure Type: Polycarbonate
  • Description/Special Features: Non-Drift Silicon Light Sensor with IR Filter, DC Relay with Zero-Crossing Circuitry for Extended Life
  • Manufacturers Warranty Length: 12 yr
  • Housing Material: Polycarbonate
  • Length (Straight Wi

Related Products

View Now
Photocntrl, 1/2In Male Pipe Thread, 120VAC
View Now
Photocontrol, Fixed, 120VAC
View Now
Photocontrol, 120VAC, 1800W, Stem
View Now
Photocontrol, Twist Lock, 480VAC
View Now
Photocontrol, 105 to 305VAC, Turn-Lock
View Now
Photocontrol, 1/2"-14 NPSM Thread Mount
View Now
Photo Control Receptacle Mount Only
View Now
Photocontrol, Gray, Metal, 3-3/4"W
View Now
Photocontrol, Turn-Lock, 120 to 277VAC

Suggested Products

View Now
Lockout Padlock Nylon Blue 1.0" Plastic
View Now

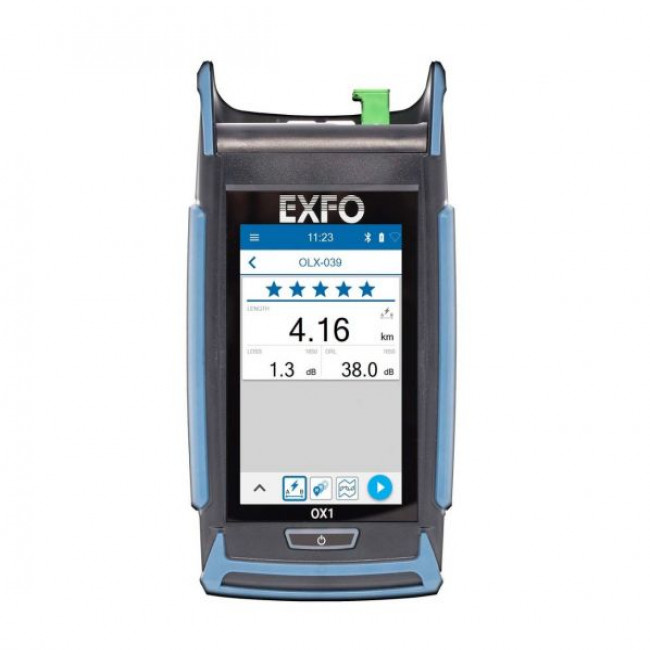

Last Mile Maintenance Optical Explorer 1650 nm live
